As a part of my senior project, my group designed a unobtrusive and discreet device that allows individuals with temporal lobe epilepsy (TLE) to passively collect EEG data and store it to and SD card. This device could allow for more accurate assessments, so clinicians can more effectively manage patient conditions, prescribe medication, and detect TLE events.
We considered a total of 43 functional specifications pertaining to the device components and their composition, and realized measurable technical specifications from there. Of those specifications, we emphasized discreetness, durability, user comfort, obstructiveness, and ease of use.

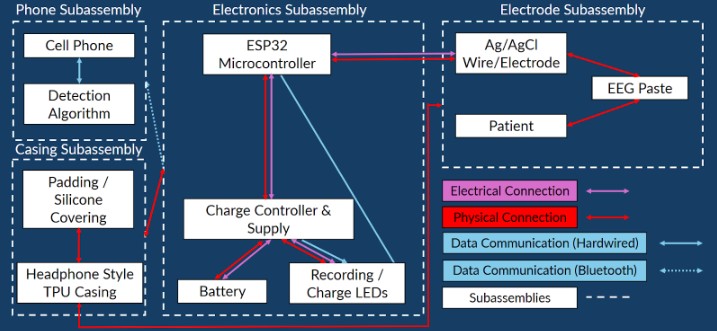

The device can be split into 3 sections:
- Ear Piece
- Machine Learning Algorithm
- Electronic Components

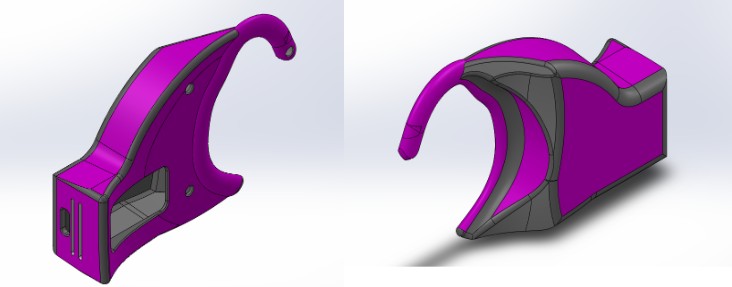

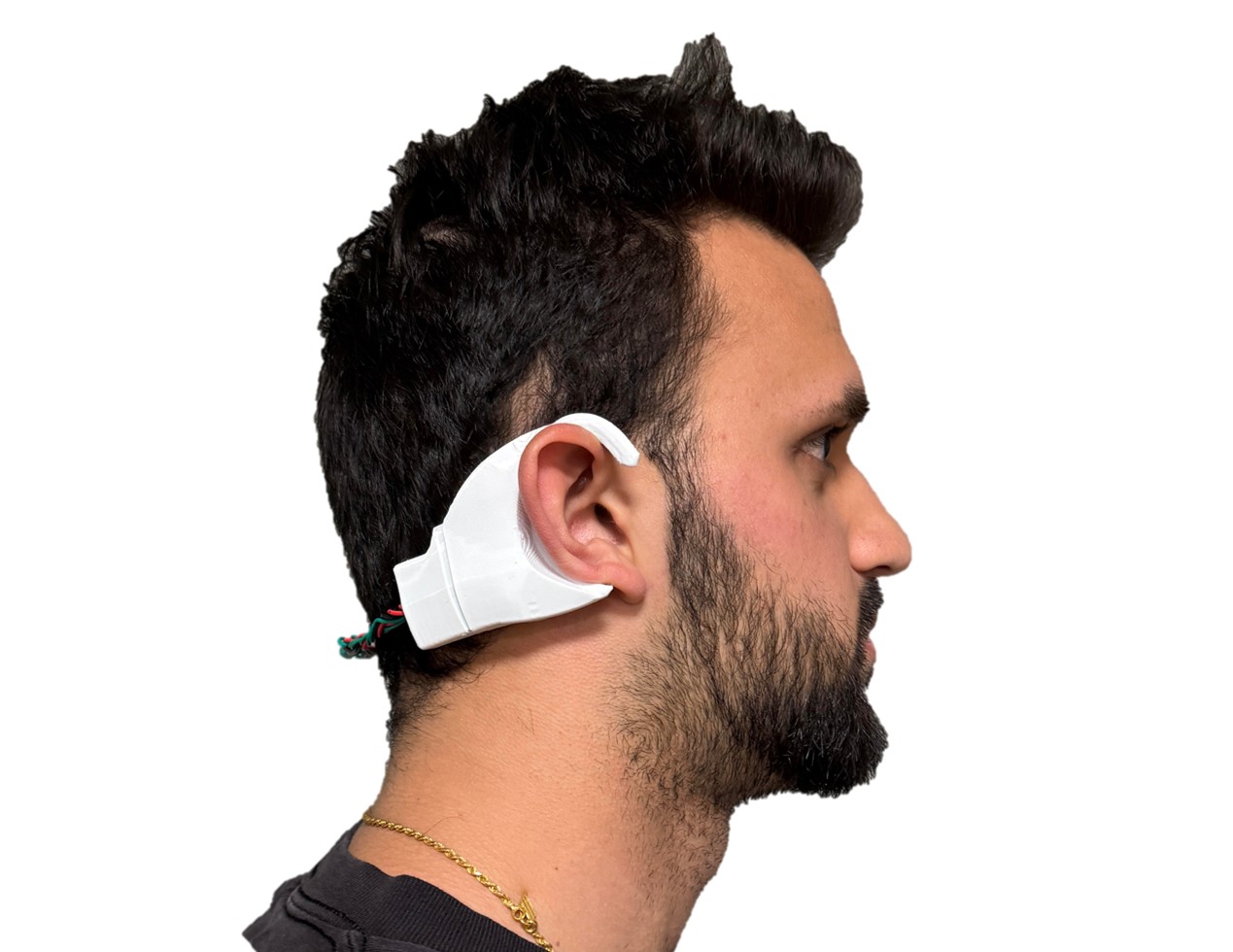

As the CAD lead for the team, it was my job to design the over-the-ear device casing to achieve comfortability, durability and overall material biocompatability.

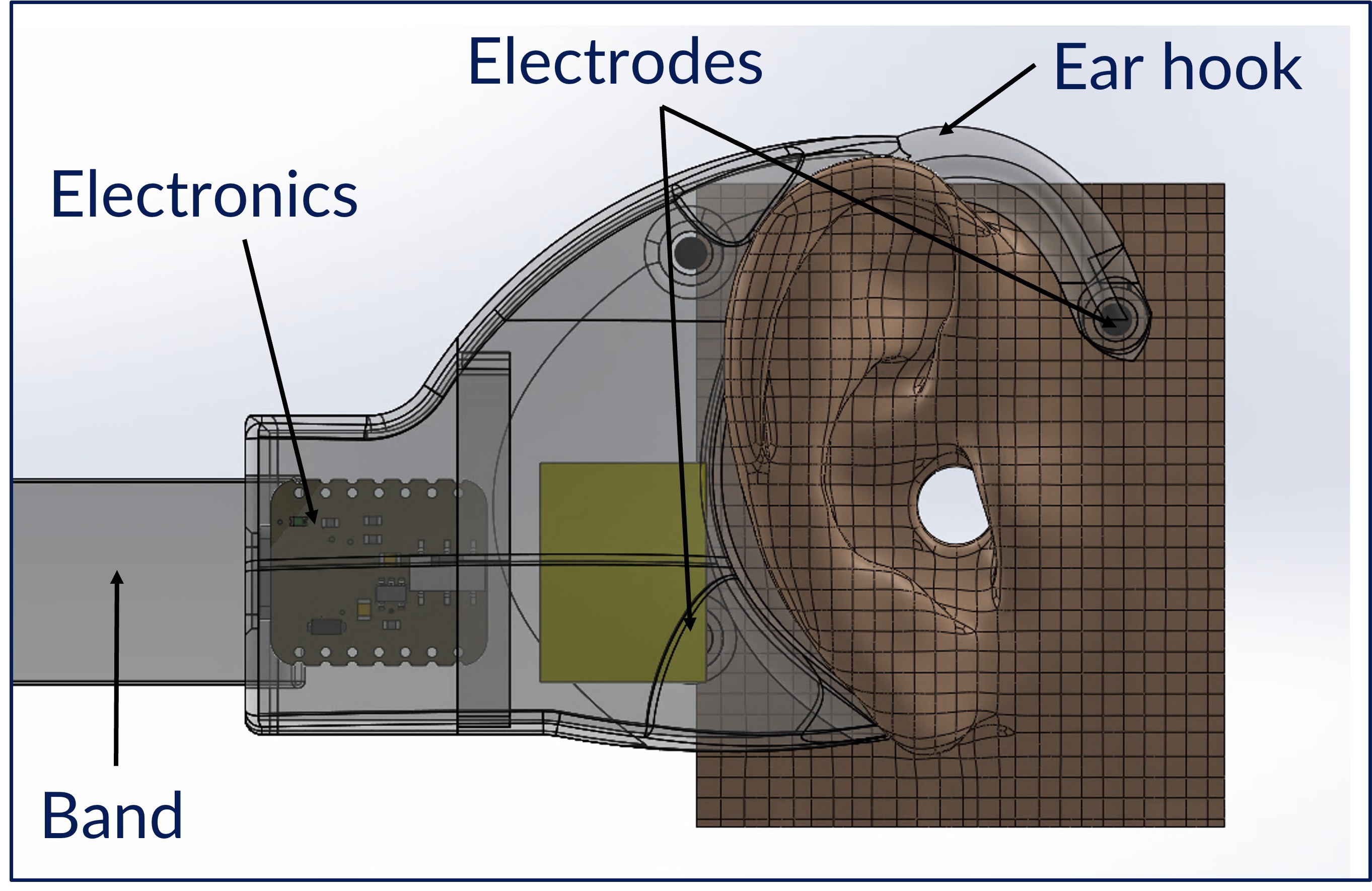

The design needed to fit around an average-sized ear, and also have space for electrodes to be caputred in the device casing.
After researching anthromophoric dimensions of ear lobes and mastoid bone, as well as taking a survey of students in my class by measuring their mastoid bone to inform my model. The approach I took to modeling the device casing was to have the medial surface contacting the skin capture the mastoid bone and the anterior surface model the mastoid bone as is protudes from behind the ear
We decided to print the first prototypes in ABS, as it satisfied the durability constraints we set while also being biocompatible. Later on we switched to PETG because it was researched to be a better material for devices coming into contact with the skin and bodily fluids. We also experimented with painting the casings in different skin toned coatings to make it more discrete.
